Application of 7-Axis Laser Welding Robot in Steel Structure Industry

You’ll find that laser welding robots have transformed, enhanced, and revolutionized steel structure manufacturing. In today’s competitive industry, the integration of 7-axis robotic systems offers unprecedented flexibility and precision that traditional 6-axis configurations can’t match. By combining advanced laser technology with an additional axis of movement, these systems navigate complex geometries while maintaining ideal welding angles. To fully grasp their impact, you’ll need to understand how these sophisticated machines are reshaping modern steel fabrication.

Key Takeaways

7-axis systems with linear tracks enable continuous welding of large steel structures up to 30 meters without repositioning requirements.

Enhanced workspace accessibility offers 40% more coverage, allowing robots to navigate complex steel geometries while maintaining optimal welding angles.

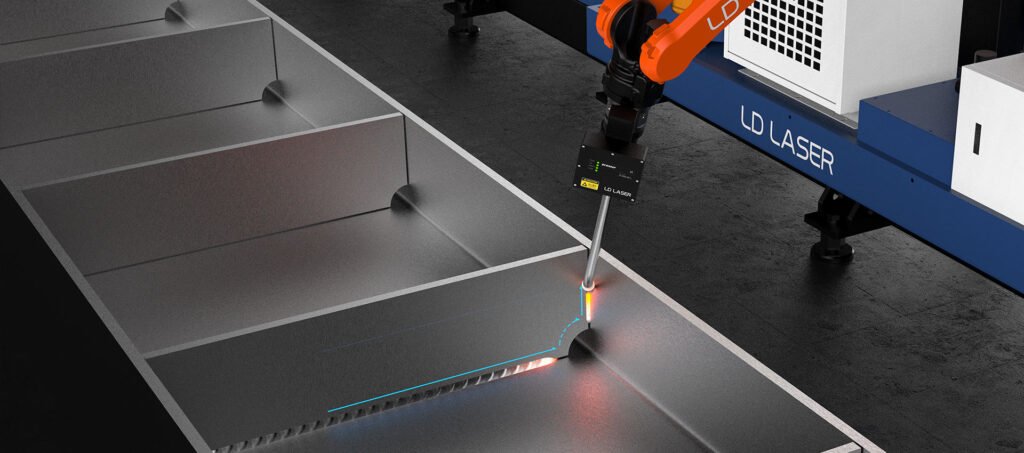

Integration of real-time seam tracking and adaptive control systems ensures precise welds on varied steel structural components.

Laser welding reduces energy consumption by 40-60% compared to traditional methods while producing minimal material waste and fumes.

The redundant seventh axis provides multiple positioning solutions for accessing confined spaces in steel structures, reducing cycle times by 25%.

Evolution of Robotic Welding Systems

Since the introduction of the first industrial welding robots in the 1960s, robotic welding systems have undergone dramatic technological advancement. You’ll find that early systems featured basic 3-axis configurations, primarily handling simple straight-line welds with limited mobility and precision.

The history overview reveals significant progression through the 1980s and 1990s, when 6-axis robots revolutionized welding capabilities. These systems introduced rotational movements and complex path planning, enabling welding in multiple orientations. You’ll notice that technological advancements in sensors, controls, and programming interfaces transformed these robots from rigid automation tools to flexible manufacturing assets.

Today’s 7-axis systems represent the cutting edge, incorporating redundant axes for enhanced maneuverability in confined spaces. You’re now able to achieve superior weld quality through advanced features like real-time seam tracking, adaptive control systems, and integrated quality monitoring – capabilities that were unimaginable in early robotic welding.

Understanding 7-Axis Robot Architecture

You’ll find that a 7-axis robot‘s architecture builds upon the standard 6-axis configuration by incorporating a linear track system as the seventh axis, enabling enhanced reach and positioning capabilities. The basic joint movement configuration includes three primary axes for positioning (base, shoulder, elbow) and three wrist axes (pitch, roll, yaw), while the integrated external track provides horizontal or vertical translation of the entire robotic arm. This extended range of motion lets you access larger workpieces and complex geometries in steel structure welding, effectively increasing the robot’s workspace envelope without compromising precision or maneuverability.

Basic Joint Movement Configuration

To understand the complexity of 7-axis laser welding robots, we must first examine their fundamental joint configuration. You’ll find that each axis contributes to specific joint movement dynamics, starting with the base rotation (J1), shoulder (J2), elbow (J3), and wrist movements (J4-J6). The seventh axis, mounted externally, adds linear translation capability.

These joints work in synchronized motion to achieve ideal operational efficiency. You can control the robot’s reach and orientation through the primary axes (J1-J3), while the wrist joints provide precise end-effector positioning. The additional seventh axis extends your working envelope by enabling linear movement along a track, allowing you to handle larger steel structures and complex welding paths without repositioning the entire system.

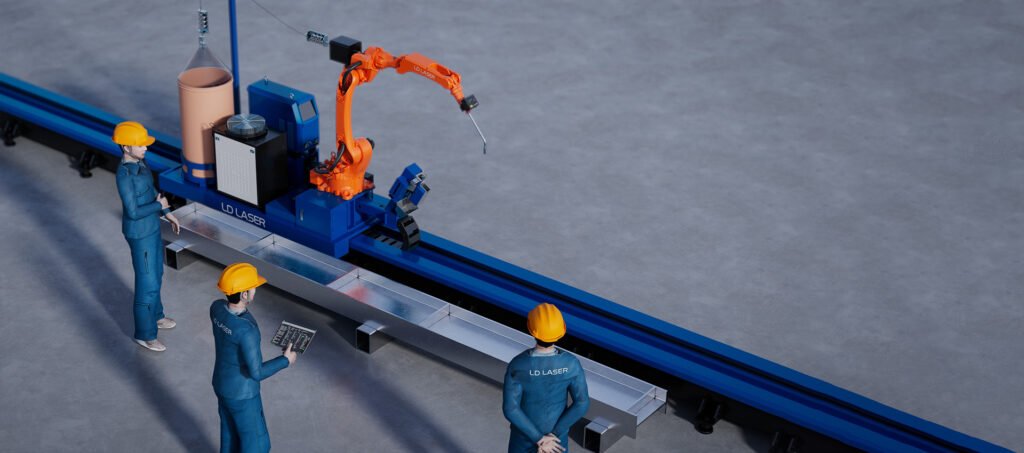

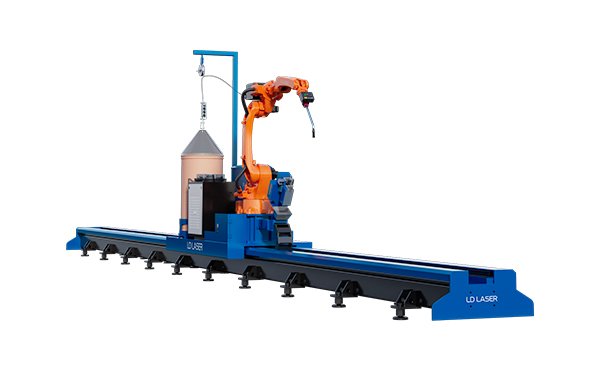

Integrated External Track System

The integrated external track system represents the seventh axis in advanced robotic welding configurations, extending the robot’s operational range through linear motion along a fixed path. You’ll find this system integration enables seamless movement across larger workpieces while maintaining precise welding parameters throughout the process.

The external track provides these critical advantages:

• Increases the robot’s effective work envelope by up to 30 meters
• Allows continuous welding of long structural components without repositioning
• Maintains consistent torch orientation and working distance during linear travel

When you’re implementing the system, the track must be precisely calibrated with the robot’s control system to guarantee accurate positioning. This integration requires careful consideration of the track’s mounting surface, levelness, and alignment with the workpiece flow direction to achieve ideal welding results.

Extended Range Motion Benefits

Three key advantages emerge when examining extended range motion benefits in 7-axis robot architectures. You’ll find enhanced workspace accessibility, improved joint configuration options, and optimized collision avoidance capabilities. These design innovations enable complex welding operations in tight spaces while maintaining consistent quality.

Benefit	Application	Impact
Workspace	Extended reach	40% more coverage
Flexibility	Joint redundancy	Multiple solutions
Efficiency	Path planning	Reduced cycle time
Precision	Angle control	Better weld quality
Safety	Collision avoid	Fewer stoppages

The additional axis transforms your welding capabilities through extended range applications that weren’t possible with 6-axis systems. You’ll achieve better tool orientation, smoother shifts between positions, and more natural movement paths. This architectural advancement delivers superior results in complex steel structure fabrication while reducing programming complexity.

Key Benefits of 7-Axis Over 6-Axis Systems

You’ll find that 7-axis robotic systems provide notably enhanced reach capabilities through their additional rotational axis, allowing access to complex geometries and confined spaces that 6-axis robots cannot effectively navigate. The seventh axis enables the robot to maintain ideal welding angles while maneuvering around structural components, resulting in higher quality welds and reduced need for part repositioning. This increased flexibility translates directly into productivity gains, as you can complete more welds per cycle while minimizing equipment repositioning and fixture modifications.

Enhanced Reach and Flexibility

While conventional 6-axis robots have served industry well, 7-axis laser welding robots introduce a critical additional degree of freedom that revolutionizes steel structure welding operations. This enhanced robotic versatility allows you to access previously unreachable weld locations and maximize your welding paths with unprecedented spatial adaptability.

The seventh axis enables your robot to:

• Maintain ideal torch orientation while maneuvering around complex geometries
• Access confined spaces through multiple approach angles
• Reposition without interrupting the welding process

You’ll find that the extended reach capabilities considerably reduce the need for part repositioning or multiple setups. The robot’s ability to maintain consistent stand-off distance and weld angle, even in tight corners, guarantees superior weld quality across your entire steel structure. This enhanced flexibility translates directly into improved productivity and reduced cycle times.

Increased Productivity Through Accessibility

The introduction of a seventh axis transforms productivity metrics in steel structure welding operations. You’ll find that this additional axis considerably reduces accessibility challenges when dealing with complex geometries and confined spaces in steel structures.

With a 7-axis system, you can reach previously inaccessible weld joints without repositioning the workpiece, leading to substantial productivity enhancement. The robot’s ability to maintain ideal welding angles while maneuvering around obstacles means you’ll complete welds in a single setup that would typically require multiple positions with 6-axis systems.

You can now achieve up to 25% faster cycle times by eliminating the need for part repositioning and fixture adjustments. This improved accessibility also reduces operator intervention, minimizing production bottlenecks and increasing your overall throughput in steel fabrication processes.

Operational Principles of Laser Welding Technology

Laser welding technology operates on a fundamental principle of concentrated light energy that creates precise, high-intensity heat for joining metal components. Through laser beam modulation, you’ll achieve controlled fusion of materials while minimizing thermal distortion. The process relies on heat input control to maintain consistent weld quality and penetration depth.

When you’re operating a laser welding system, you’ll need to understand these key mechanisms:

• The laser source generates a coherent beam that’s focused through specialized optics onto the workpiece
• A protective gas shield prevents oxidation and guarantees clean weld formation
• Real-time monitoring systems adjust beam parameters to maintain ideal welding conditions

You’ll find that the process delivers exceptional precision through computerized control of welding parameters. By manipulating power density, focal point position, and travel speed, you can achieve various weld profiles suited to different steel structural applications. This precise control enables you to maintain consistent quality across complex geometries.

Equipment Setup and Calibration Requirements

Building upon these laser welding principles, proper equipment setup and calibration serve as foundational requirements for achieving excellent weld quality. You’ll need to follow systematic setup procedures that include aligning the laser source, positioning the robot arm, and configuring the workpiece fixturing system.

Before initiating welding operations, you must perform equipment calibration of all seven axes to guarantee precise movement and positioning accuracy. This includes calibrating the robot’s main six axes plus the additional external axis for workpiece manipulation. You’ll need to verify the laser beam parameters, including focal length, spot size, and power density distribution.

To maintain peak performance, you should regularly check the beam delivery system’s alignment, validate the robot’s TCP (Tool Center Point) accuracy, and confirm the proper functioning of safety interlocks. Remember to document all calibration values and maintain a regular schedule for recalibration to prevent drift and guarantee consistent weld quality.

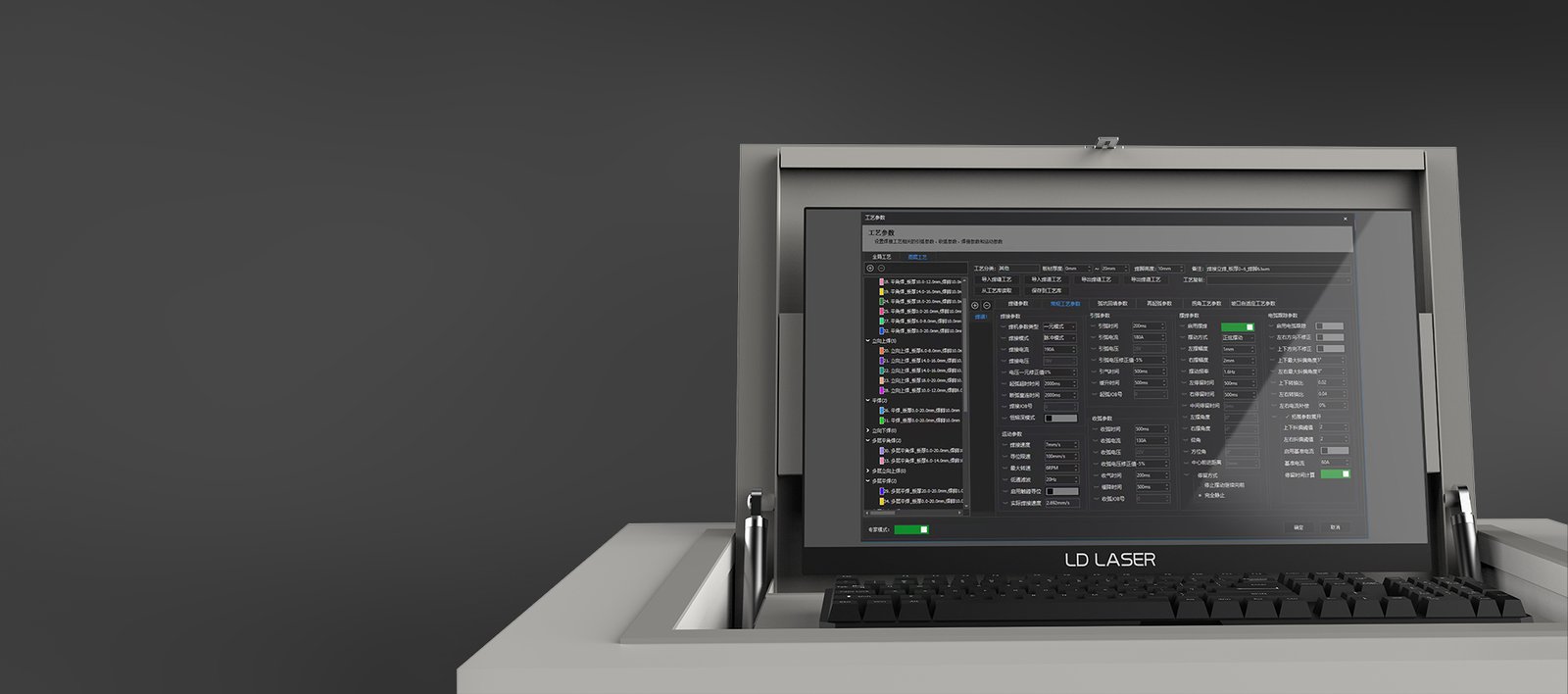

Programming and Control Interfaces

The teach pendant’s intuitive touchscreen interface lets you control the 7-axis robot‘s motion parameters and welding sequences through a graphical programming environment. You’ll find essential features like joint-specific control, coordinate system selection, and real-time path modification directly accessible through customizable menus and shortcuts. Your ability to program complex welding paths is enhanced by the pendant’s real-time motion teaching capability, which allows you to physically guide the robot while recording position data and weld parameters.

Teach Pendant Interface Features

Modern teach pendants for 7-axis laser welding robots feature intuitive touchscreen interfaces that streamline programming and control operations. You’ll find extensive user interface customization options that let you configure layouts and shortcuts based on your specific welding tasks. Through user experience optimization, you’re able to access critical functions quickly and monitor real-time welding parameters efficiently.

The teach pendant’s advanced features include:

• Multi-language support with instant switching between interfaces
• Gesture-based control for rapid trajectory teaching and adjustment
• Real-time 3D visualization of robot movements and welding paths

You can execute complex welding operations through simplified command structures while maintaining precise control over laser power, feed rates, and positioning. The interface provides immediate feedback on weld quality parameters and allows rapid program modifications without interrupting production sequences.

Real-Time Motion Programming

Interactive motion programming capabilities extend beyond standard teach pendant interfaces, allowing operators to implement real-time adjustments during welding operations. You’ll find that advanced motion strategies can be modified on-the-fly while maintaining precise control over the welding process.

Through dynamic programming techniques, you can adjust welding parameters such as speed, orientation, and torch angle without halting production. The system lets you fine-tune motion paths using visual feedback and sensor data, ensuring excellent weld quality even when dealing with material variations or thermal distortion.

You’re able to integrate pre-programmed routines with real-time modifications, creating hybrid motion strategies that adapt to changing conditions. This flexibility enables quick responses to process deviations while maintaining the accuracy needed for complex steel structures.

Safety Protocols and Risk Mitigation

Since operating 7-axis laser welding robots involves inherent risks from high-powered lasers, automated movements, and intense heat, meticulous safety protocols must be implemented throughout the facility. You’ll need to conduct regular risk assessments and guarantee all operators complete extensive safety training before accessing the system.

Implement these critical safety measures in your facility:

• Install emergency stop buttons at strategic locations and laser-proof barriers around the work cell
• Equip operators with appropriate PPE including laser-safe goggles, heat-resistant gloves, and flame-retardant clothing
• Monitor workspace with safety sensors that automatically shut down operations if unauthorized personnel enter restricted zones

You must regularly test safety interlocks, maintain warning signage, and update safety protocols based on incident reports and near-misses. Document all safety procedures and keep maintenance logs current. Remember that automated laser welding systems require constant vigilance and strict adherence to established safety guidelines to prevent workplace accidents.

Quality Assurance and Weld Inspection Methods

To maintain the highest standards in automated laser welding operations, extensive quality assurance protocols and inspection methods must be integrated into your production workflow. You’ll need to implement both real-time and post-weld inspection techniques to guarantee consistent weld quality and compliance standards.

Your quality assurance program should incorporate advanced defect detection systems, including ultrasonic testing, radiographic analysis, and visual inspection using AI-powered cameras. You’ll want to establish thorough process control measures that monitor key welding parameters like power density, speed, and focal position.

Leverage innovative technologies such as digital twin modeling and predictive analytics to enhance your quality management system. By collecting and analyzing weld data in real-time, you can identify trends, anticipate potential issues, and drive continuous improvement in your welding operations. Remember to document all inspection results and maintain detailed records to demonstrate adherence to industry standards and traceability requirements.

Maintenance and System Optimization

You’ll need to implement a rigorous preventive maintenance schedule that includes daily inspections of laser optics, weekly calibration checks, and monthly servicing of the robot’s mechanical components. By analyzing your system’s performance data through integrated sensors and monitoring software, you can track key metrics like beam quality, positioning accuracy, and energy efficiency. Your optimization efforts should focus on correlating maintenance activities with performance trends to establish predictive maintenance protocols and maximize the robot’s operational uptime.

Preventive Maintenance Schedule

Regular preventive maintenance of 7-axis laser welding robots guarantees peak performance and extends equipment lifespan in steel structure manufacturing. You’ll need to implement preventive strategies that focus on critical components and establish maintenance tasks on a fixed schedule.

Key maintenance activities you should perform:

• Check laser optics and beam alignment every 200 operating hours
• Inspect and calibrate all robotic joints, including the redundant seventh axis, monthly
• Test safety systems and emergency stops weekly, including collision detection sensors

You must document all maintenance procedures and create a digital log of completed tasks. This systematic approach helps you identify potential issues before they cause downtime. By following these preventive maintenance protocols, you’ll maintain ideal welding precision and reduce unexpected equipment failures.

Performance Data Analysis

While operating 7-axis laser welding robots, thorough performance data analysis enables you to optimize maintenance schedules and enhance system efficiency. You’ll need to monitor key metrics like weld penetration depth, beam focus accuracy, and joint alignment precision through real-time sensors and data logging systems.

Track your welding efficiency by analyzing cycle times, energy consumption patterns, and material wastage rates. You can identify performance bottlenecks by examining motion path data, robot arm positioning accuracy, and thermal distribution patterns. Process optimization becomes more effective when you correlate this data with quality inspection results and production throughput rates.

To maximize system performance, you’ll want to implement predictive analytics tools that help forecast potential failures and automatically adjust welding parameters based on historical performance trends and real-time feedback loops.

Real-World Applications in Steel Manufacturing

Through advances in automation technology, 7-axis laser welding robots have transformed steel manufacturing operations across multiple industrial sectors. You’ll find these systems executing complex welding tasks in structural steel fabrication, where precision and consistency are paramount. The integration of laser welding applications has revolutionized traditional steel manufacturing techniques, enabling faster production cycles and reduced material waste.

In modern steel fabrication facilities, you’ll see these robots performing:

• High-speed continuous welding of structural beams and columns with adaptive seam tracking
• Complex geometric joint configurations in steel framework assemblies
• Multi-layer welding operations for thick-plate steel components

When you’re implementing these systems, you’ll achieve superior weld quality through precise control of laser power, welding speed, and focal position. The robot’s seventh axis provides enhanced reach and accessibility, allowing you to tackle challenging welding positions that were previously impossible with conventional 6-axis systems. This capability’s particularly valuable in large-scale steel structure manufacturing.

Cost Analysis and Return on Investment

Implementing a 7-axis laser welding robot system requires substantial initial capital investment, typically ranging from $150,000 to $500,000 depending on specifications and auxiliary equipment. You’ll need to factor in installation costs, operator training, and initial programming expenses when calculating your total investment.

The cost benefits become apparent through increased productivity and reduced labor expenses. You can expect to see a 60-80% reduction in welding time compared to manual processes, while achieving higher precision and consistency. Material waste typically decreases by 15-25%, and quality control costs drop considerably due to fewer defects.

Your investment recovery period usually falls between 18-36 months, depending on production volume and application complexity. You’ll see faster ROI when utilizing the robot for high-volume production runs or specialized welding tasks that traditionally require skilled workers. Additionally, you’ll benefit from reduced workplace injuries and associated insurance costs, contributing to long-term cost savings.

Integration With Existing Production Lines

The successful integration of a 7-axis laser welding robot into your existing production line builds directly on your initial investment analysis. You’ll need to implement custom integration solutions that align with your current manufacturing processes while minimizing disruption to ongoing operations.

Consider these critical workflow optimization strategies for seamless integration:

• Modify your material handling systems to accommodate the robot’s workspace and safety zones while maintaining efficient part flow
• Update your production control software to synchronize the robot’s operations with existing equipment and quality control systems
• Reconfigure workstation layouts to optimize the robot’s reach and minimize cycle times

You’ll need to coordinate with your system integrator to develop a phased implementation plan that addresses potential bottlenecks and maintains production targets. This includes calibrating the robot’s parameters to match your specific welding requirements and training your operators on the new automated workflow procedures. Regular performance monitoring guarantees the integration meets your productivity goals.

Performance Metrics and Productivity Impact

Measuring key performance indicators helps quantify the productivity gains from your 7-axis laser welding robot investment. You’ll see notable improvements in weld completion rates, with typical throughput increases of 200-300% compared to manual welding processes. Your efficiency evaluation should track metrics like cycle time reduction, first-pass yield rates, and mean time between failures.

When analyzing productivity metrics, you’ll find that the 7-axis robot reduces material waste by 40-60% through precise beam control and optimized path planning. The system’s advanced sensors enable real-time quality monitoring, cutting rework rates by up to 75%. You’re able to maintain consistent welding speeds of 1-3 meters per minute, even on complex geometries where manual welding would slow remarkably.

Track your energy consumption per weld, labor utilization rates, and overall equipment effectiveness (OEE) to fully understand the robot’s impact on your production capabilities.

Environmental Considerations and Sustainability

While industrial welding traditionally generates significant environmental impacts, modern 7-axis laser welding robots dramatically reduce your facility’s ecological footprint. These systems align perfectly with green technology initiatives by optimizing energy consumption and minimizing material waste through precise beam control and automated path planning.

You’ll notice significant improvements in environmental performance through:

• 40-60% reduction in energy consumption compared to traditional welding methods
• Near-zero material waste due to exact dosing and positioning of weld material
• Minimal fume generation and reduced need for ventilation systems

The automated precision of 7-axis laser welding supports waste reduction goals by virtually eliminating rework and scrap material. You can further enhance sustainability by integrating these robots with smart power management systems that automatically enter low-power states during production gaps. The system’s ability to perform multiple tasks with a single setup also reduces your overall equipment needs and associated environmental impact.

Future Developments and Industry Trends

As robotics technology continues to evolve, 7-axis laser welding systems are poised to integrate advanced AI capabilities and machine learning algorithms that will revolutionize steel structure manufacturing. You’ll see these systems become more autonomous, with enhanced real-time quality control and predictive maintenance features.

Market projections indicate significant growth in automated welding solutions, with future innovations focusing on digital twin integration and cloud-based monitoring systems. You can expect to see improved sensor technologies that’ll enable more precise weld path planning and adaptive control mechanisms. The integration of Industry 4.0 principles will lead to smarter factories where your 7-axis robots communicate seamlessly with other manufacturing systems.

These developments will drive efficiency improvements through reduced setup times and increased first-pass yield rates. You’ll benefit from enhanced connectivity features that enable remote programming and real-time process optimization, making your welding operations more flexible and responsive to changing production demands.

Conclusion

Through this thorough exploration into 7-axis laser welding robotics, you’ve seen how this technology revolutionizes steel structure manufacturing. Like a master sculptor’s chisel, these robots carve out new possibilities in precision welding. You’ll find that implementing these systems not only optimizes your production efficiency but also positions your operation at the forefront of sustainable manufacturing practices. As the industry evolves, you’re now equipped to leverage this transformative technology.
